After a few trial-and-error we finally found what (we think) are the perfect recessed ceiling LED lights! The first LED we ordered were WAY too bright as the glass was clear instead of frosted. Even with a dimmer, the light was shocking for the eye. Then we stumbled on the Acegoo LED lights…



We installed 10 Acegoo Warm-White LEDs: in term of lumens, 6-8 lights should be enough. We installed 10 in order to get a more uniform source of lightning (so when a overhead storage door is opened, we’re still getting light from somewhere).

The LED lights are operated with a dual zone dimmer; the bedroom zone has 4 lights and the kitchen zone has 6 lights.

The 10 lights draw 1.3 amp total at 100% intensity, 0.1 amp total at minimum intensity. For reference, we will set the intensity to 100% when washing dishes, being productive, etc. We will set the intensity to approximately 10% for quiet moments.

LED-Intensity

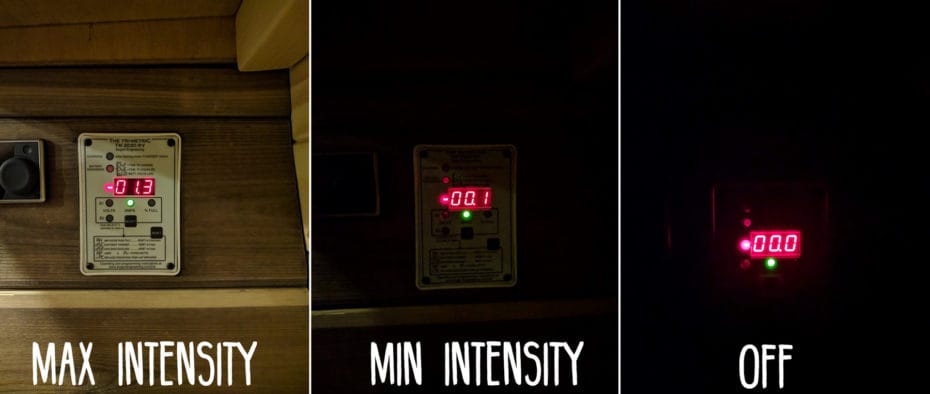

Amperage Draw reading on the Bogart TM-2030-RV Monitor.





What we Like about the Acegoo LED Lights

  • They are dimmable (with an appropriate LED dimmer, see below)
  • The frosted glass produces a soft & diffused light
  • The spring mechanism makes it very easy to install and remove the LED from the ceiling



What we Don’t Like …

Nothing to see here!





Models & Where to Buy


DISCLOSURE:

This post contains affiliate links, which means that if you click a product link and buy anything from the merchant, we will receive a commission fee. The price you pay remains the same, affiliate link or not.

Portrait
Buying through our product links is the best way to say thanks if we were of any help for your conversion! Thanks for supporting us and for keeping this website alive 🙂



Alternatively, you can visit our Say Thanks! page.






acegoo Recessed Ceiling Light LED 12V 3W, Warm White (Silver)

Warm White, Silver Finish. These are the one that we are using! Buy from Amazon.

acegoo Recessed Ceiling Light LED 12V 3W, Warm White (White)

Warm White, White Finish. Buy from Amazon.

acegoo Recessed Ceiling Light LED 12V 3W, Warm White (Silver)

Cool White, Silver Finish. Buy from Amazon.

acegoo Recessed Ceiling Light LED 12V 3W, Warm White (White)

Cool White, White Finish. Buy from Amazon.



Dimmer

LEDs MUST be dimmed with an appropriate LED dimmer. If you’re in the market for a 12V one, good luck! They are either super expensive or super ugly. After countless hours of research, we found the perfect match for our great LEDs! It’s a two-zones dimmer, so we can control the bedroom/kitchen LEDs independently. The sliders feel great and hold in place as they should. The lights are off when the sliders are completely down:

Dual_Slide_Switch_Dimmer_LEDs

Dual Slide Switch and Dimmer (12V). Buy from SuperBrightLEDs.com.



Dual-Zone-Dimmer



Installation

It doesn’t get easier than this…

acegoo Recessed Ceiling Light LED 12V 3W, installation

Manufacturer Installation Instructions (click to enlarge)



Using a 2-3/8″ diameter hole saw (http://amzn.to/2rLyoRG), we prepared the cutouts in the paneling:

Recessed Light LED Cutout



To install the LEDs, pull-up the two springs then the LEDs just “snap” into place (and can later be removed easily).

For the wood paneling installation write-up: https://faroutride.com/wood-paneling/



Electrical Wiring

The lights are wired in parallel (we heard of some people wiring them in series and it wouldn’t work). Here is the wiring diagram:

Van LED lights Wiring

(Note: to size your wires, please read: Electrical System Design)

Material shown in the sketch above:



Van-Converson-LED-wiring

LED wiring van





Voilà!

Lights-On-Lights-Off

Lights Off / Lights On



Runner Up

As mentioned in the introduction, we first ordered LEDs from Superbrightleds.com. Why didn’t we used them? Because they are, well… SUPER-BRIGHT! The clear glass will not diffuse the light and we found this to be very irritating. Also, we prefer the spring mechanism of the Acegoo LEDs; we feel they will hold better and can be replaced more easily. Don’t get us wrong: the quality of the superbrightleds.com is just fine. In fact, we would certainly use them at a location where the light is not directly in our eyes (such as the cargo area). But because of the clear glass, we would not recommend them for a living area.

SuperBrightLEDS VS acegoo

(click to enlarge)



Conclusion

We’re stoked with our Acegoo lights / Dual-Zone-Dimmer combo! If we were to start over, we would go the exact same route!
