Ford Transit Floor | CNC File (digital download)
US$50.00

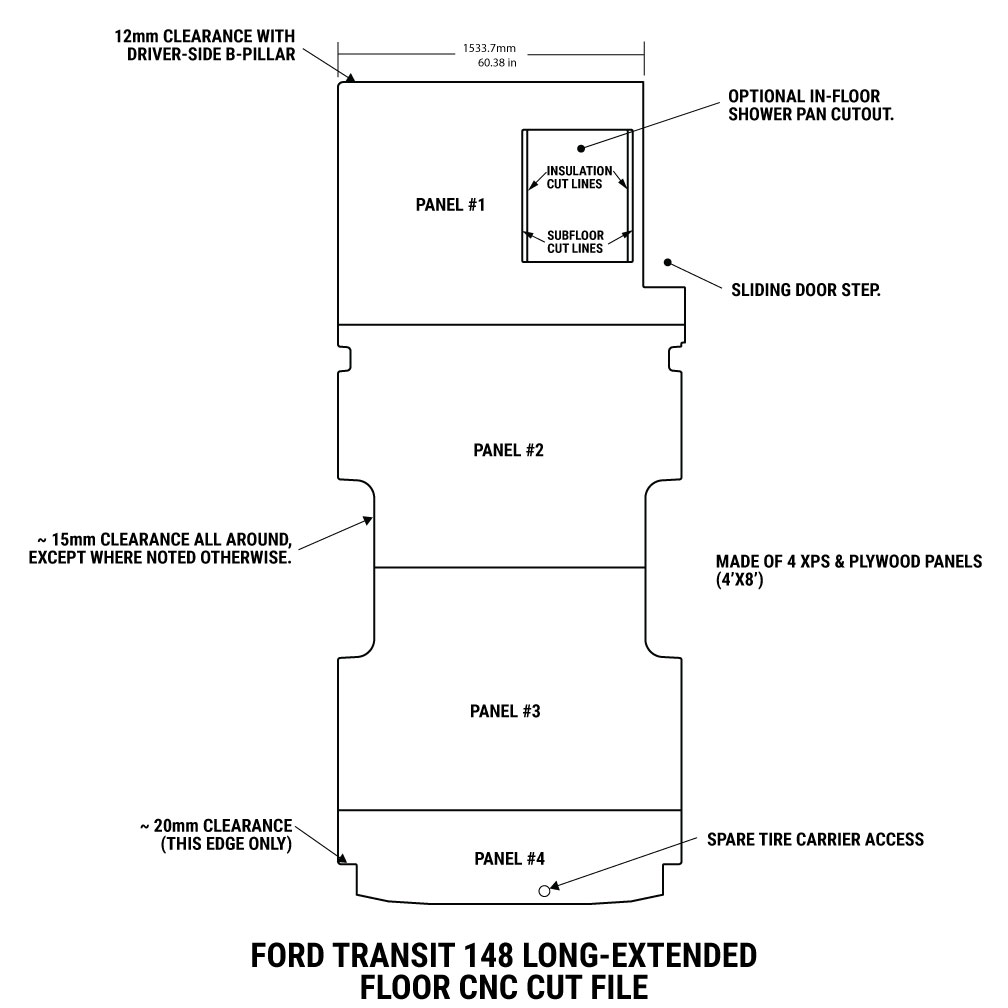

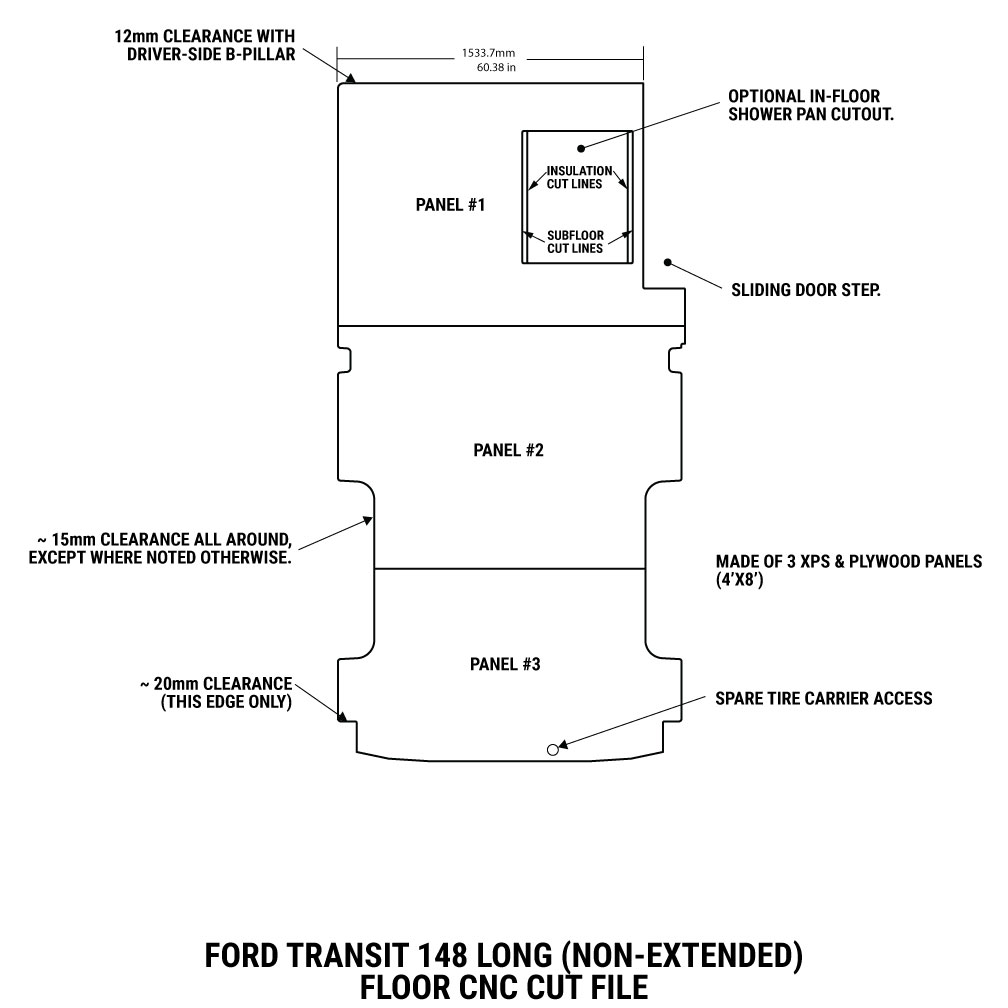

Use this .dxf file to CNC-cut the floor of your Ford Transit (rigid insulation & plywood subfloor). Before downloading this file, scroll down and review the details.
Note: This is a .dxf file with the profile contours. You are in charge of generating the g-code for your machine.
The details
Read this BEFORE downloading the CNC file!
Use this CNC cut file to replicate our floor per FarOutVan #2. To ensure a successful installation, you must read and understand this article, in which we document EVERYTHING: material, tools, how to fill the gap around the contour, fit the sliding door step, install the edge trims, etc.:
Article Coming Soon…
A few more things:
- Optional in-floor shower pan: TecVan.co
- We haven’t installed our shower system yet; we will document and publish all the details when done! But the plan is to have an overhead cabinet to store the curtain, shower head, etc., and to install this grey water tank under the floor.
- The depth of the shower pan is a bit over 1.5″, so the total floor thickness (insulation + subfloor + covering) must be more than that!
- The large gap around the contour (~15mm) is intentional to prevent the insulation from rubbing against the factory sealant, which would result in squeaking. This gap is then filled with Great Stuff and trimmed flush with the floor. We found this method to be less work than having a narrow gap and trying to cut the excess factory sealant!
This download includes the .dxf file for CNC.
Get the CNC Package and log in to unlock this download (and more)! 🙂
Get the CNC Package and log in to unlock this download (and more)! 🙂
We also include a Shower Pan Foam Support with this download. However, because each floor is different (adhesive thickness, material variations, etc.), it is YOUR responsibility to complete your floor, measure the actual thickness, and adjust the foam piece thickness accordingly to get adequate support. We provide the STEP file so that you can adjust it more easily.
Get the CNC Package and log in to unlock this download (and more)! 🙂
