We are adding a few pass-through holes in our Ford Transit. This is to route electrical wiring, plumbing, vents, and so on. Below is a list of all these holes; refer to FarOutRide #2 Build Journal for detailed write-up/how-to (links provided below).
Always perform rust-prevention whenever a hole is drilled or metal is trimmed in your van!
Then, add sharp edge protection.
Floor
Wall-Driver
B Pillars | Driver Side
Components passing through this hole:
- Remote air filter of the Air Lift compressor.
- Wiring harness of the Air Lift system.
- Fuel pump harness for the Espar AS3-B2L.
- Toilet’s exhaust (still not install to this day, but our decision will be based on Toilet Guide).
We drilled this access hole with a 2.5in bi-metal hole saw, performed rust prevention, and lastly we added a rubber grommet that we 3D printed (Get the 3D Print File, or Buy on Amazon).
Espar Heater
A <-> B Pillars | Passenger Side

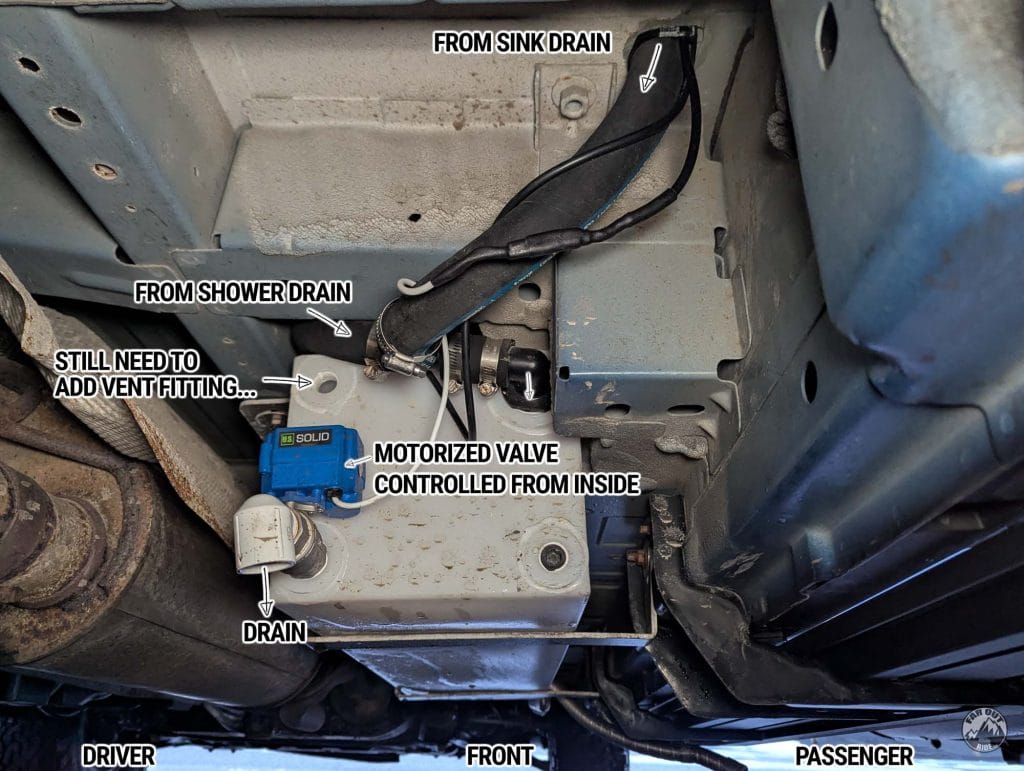

Shower Drain
B <-> C Pillars | Passenger Side
Sink Drain
C Pillar | Passenger Side

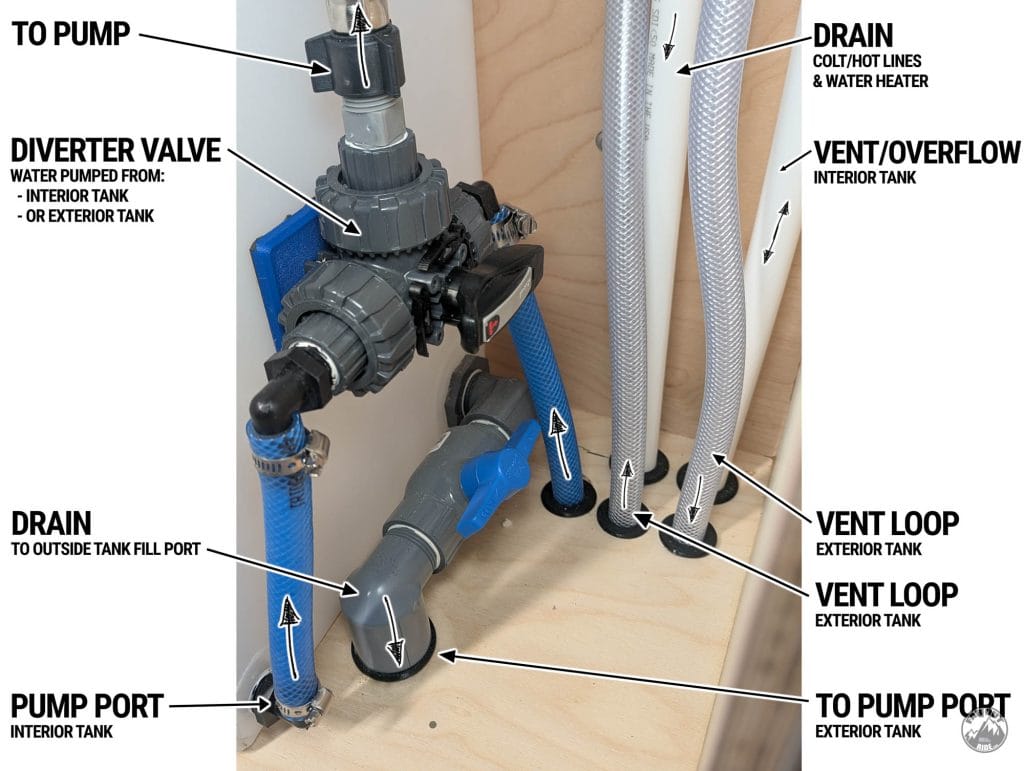

Water System
C <-> D Pillars | Passenger Side
Shore Power Inlet
D Pillar | Driver Side

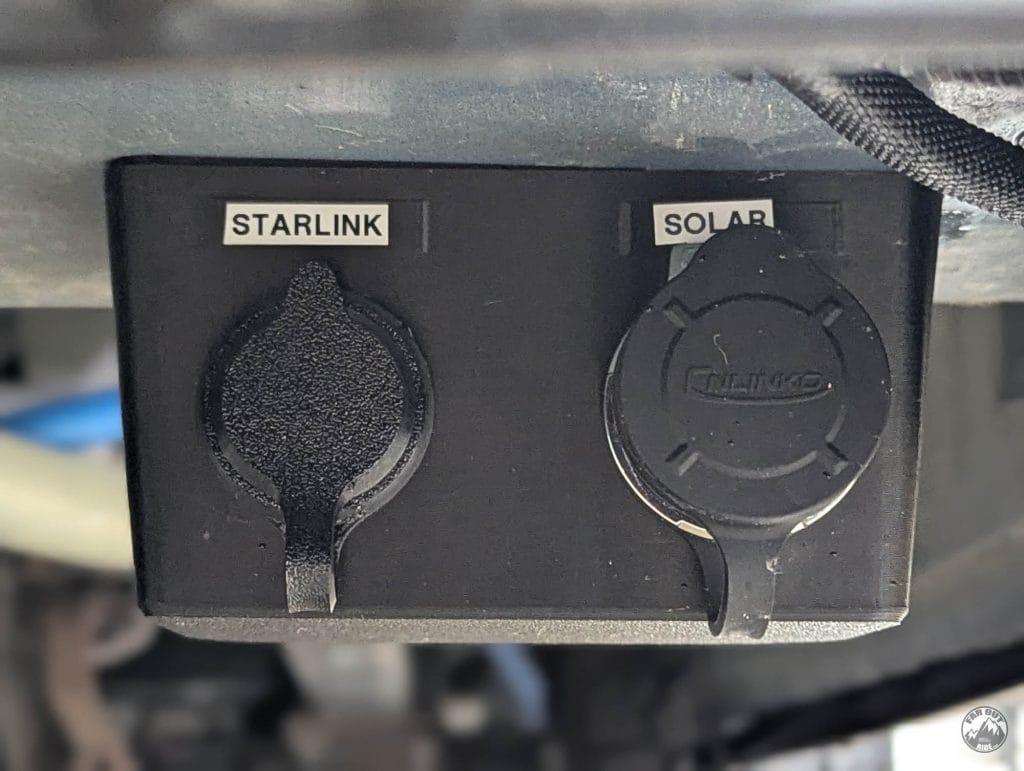

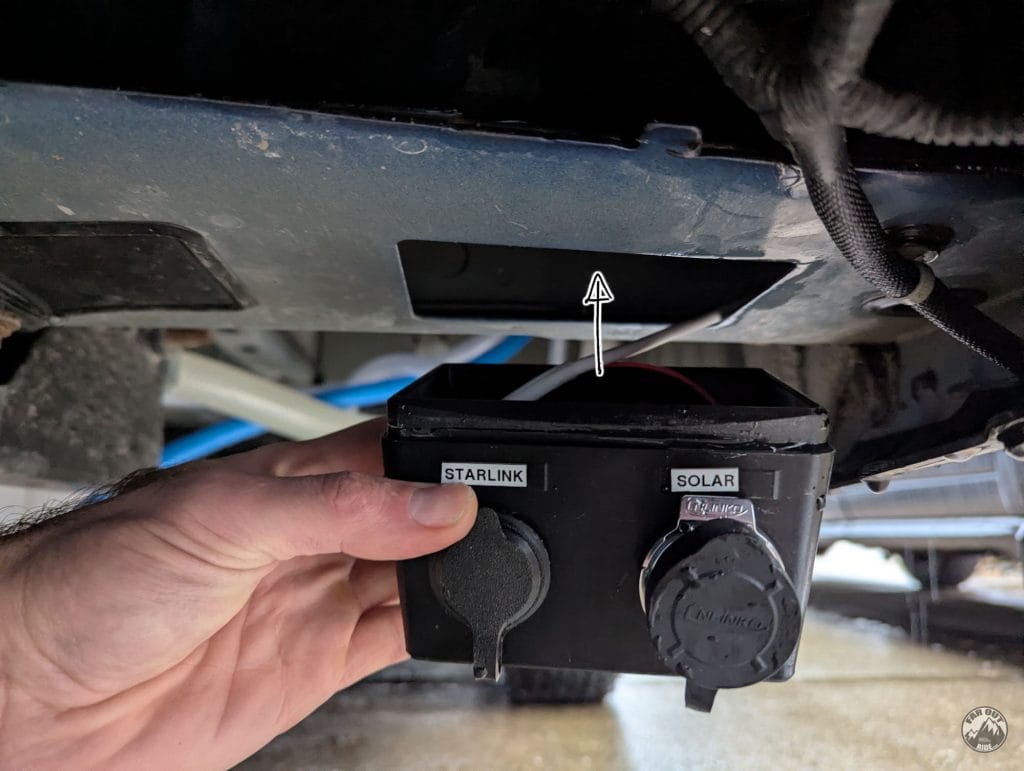

Starlink Mini Jack
D Pillar | Passenger Side
Roof
Solar Cables
Starlink Mini Dish Cable
D Pillar | Passenger Side
MIMO Antenna Cables
Passenger Side
Minor addition to the “Floor 1.1 Wall-driver” bullet list — the Espar fuel pump harness passes through this floor hole as well according to the guide: https://faroutride.com/espar-install/#electrical-wiring
Added!
Thanks Scott for providing all the details with your question/comments, as always. That helps; much appreciated!
antoine
Could be updated to include heater pass-through
This was long overdue for an update. Thanks for the reminder! 🙂
