Electrical Cabinet for EcoFlow Power Kit GEN2 (10kWh) | CNC File
US$50.00
Use these files to CNC your EcoFlow Power Kit GEN2 (10kWh) Cabinet.
Before getting this download, scroll down to “Read this First” section.
Read This First
- This is not a turnkey “Ikea-style” project… You will need tools (clamps, etc.) and woodworking skills. Please read our EcoFlow Installation Guide for an overview of the final result!

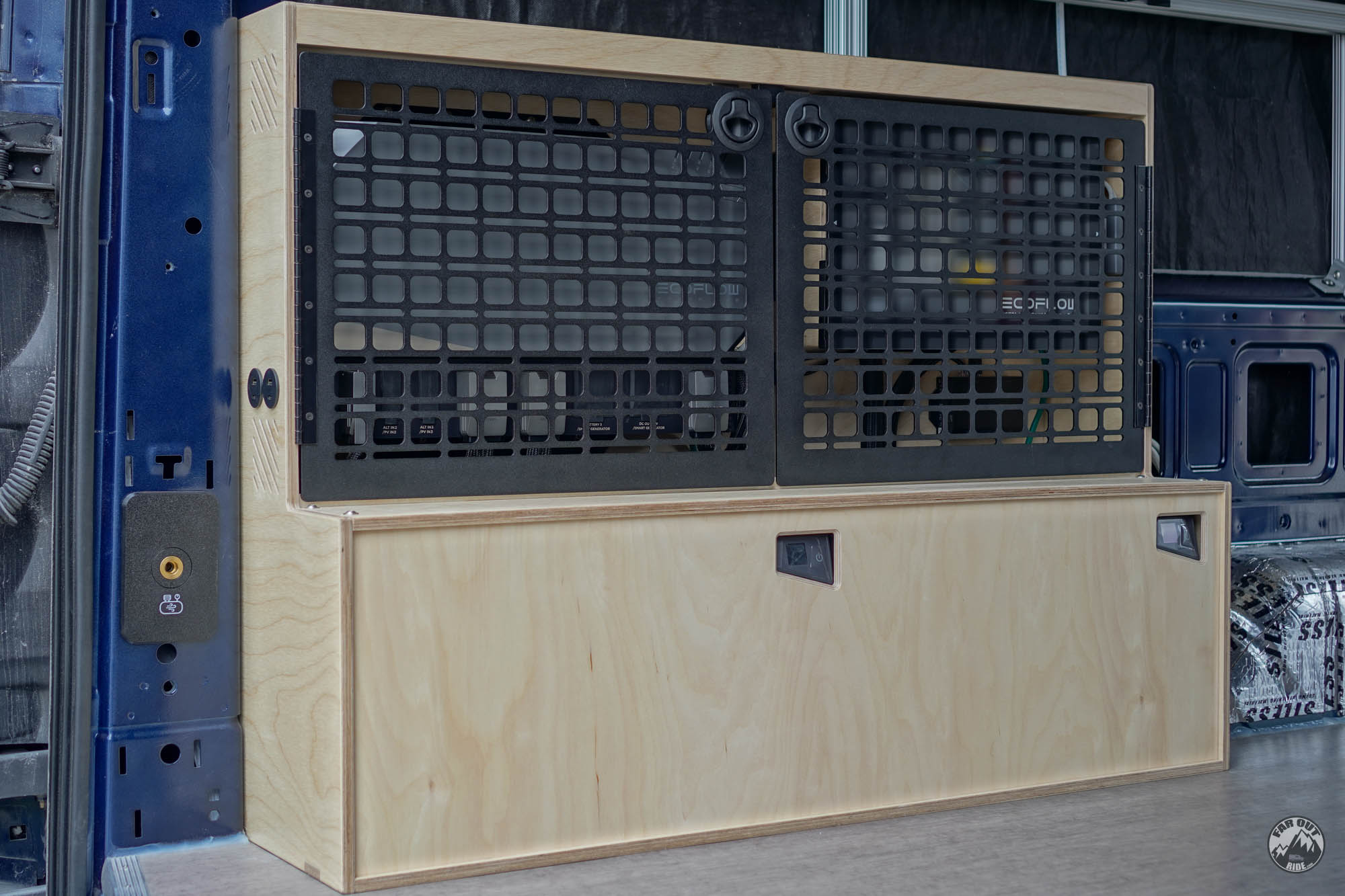

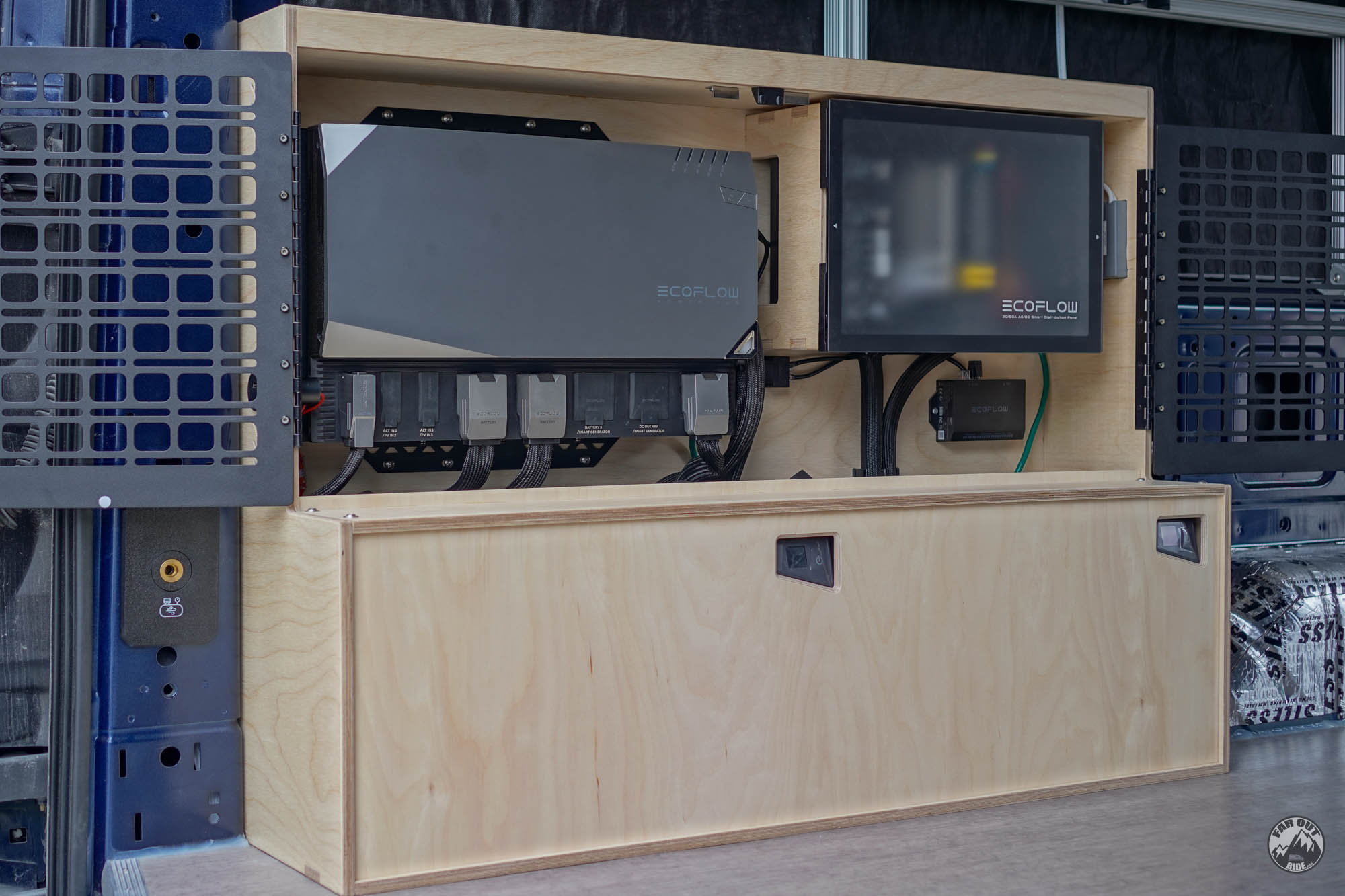

- This cabinet is designed to fit between the wheel well and the D-Pillar frame of an EXTENDED TRANSIT.

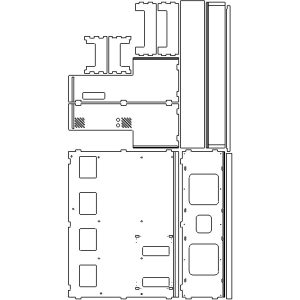

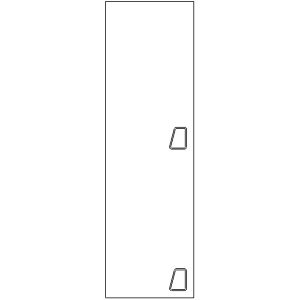

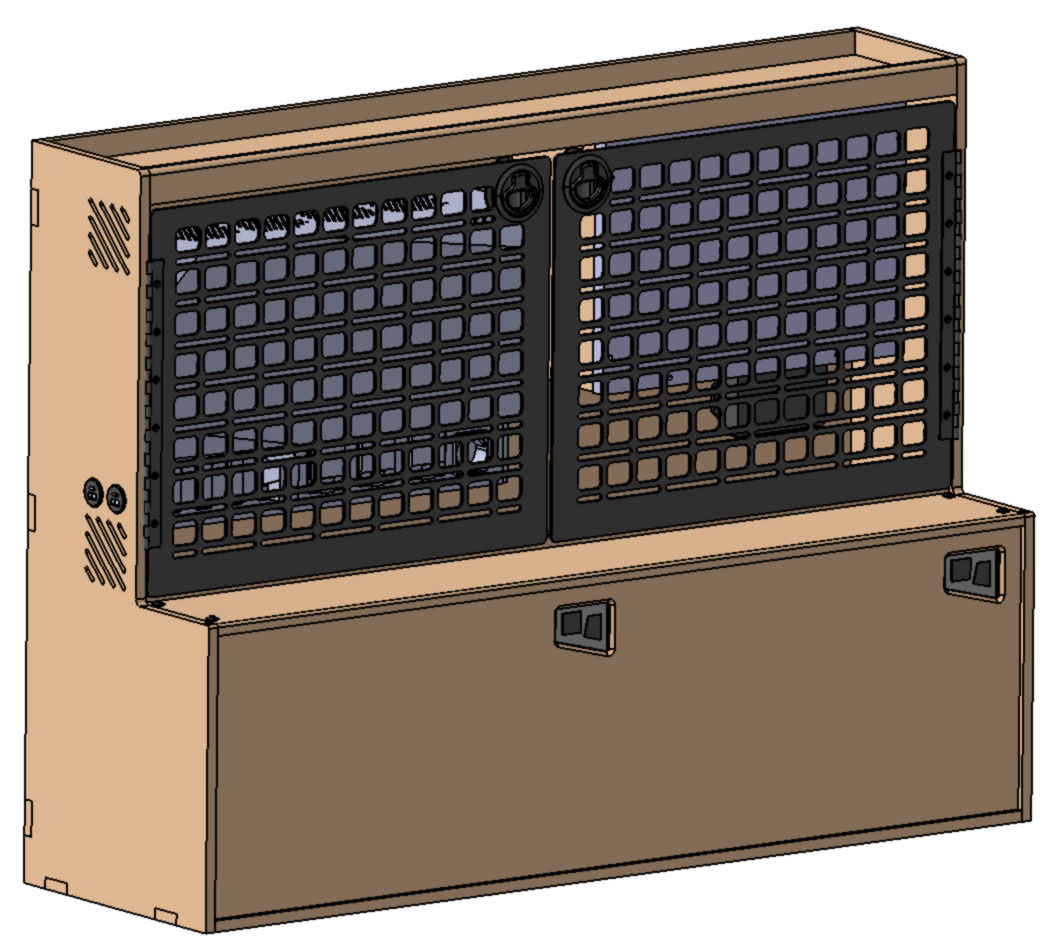

- This is a .dxf file (2D) and .step file (3D) with only geometry. You are responsible for creating your setup, tool paths, and generating the g-code for your machine.
- Tools required:
- 1/16″ Flat End Mill (small holes).
- 1/8″ Flat End Mill (most pockets and contours).
- Others:
- M6 x 30mm Flanged Button Head Screws (wall attachment).
- #8 x 1″ Wood Screws (floor attachment).
- Door Latches.
- Piano Hinges (with screws and nuts).
- USB Outlets.
- Aluminum Angle (3/16″ x 3/4″ x 3/4″).
- M6 Rivet Nuts.
- M6 x 16mm Flanged Button Head Screws (battery cover).
Files Included:
Get the CNC Package and log in to unlock this download (and more)! 🙂
Change log:
- V1: Initial release.
- V2: #4 screw holes added to non-visible surfaces. To facilitate assembly and gluing (use #4 screws to minimize the use of clamps).
