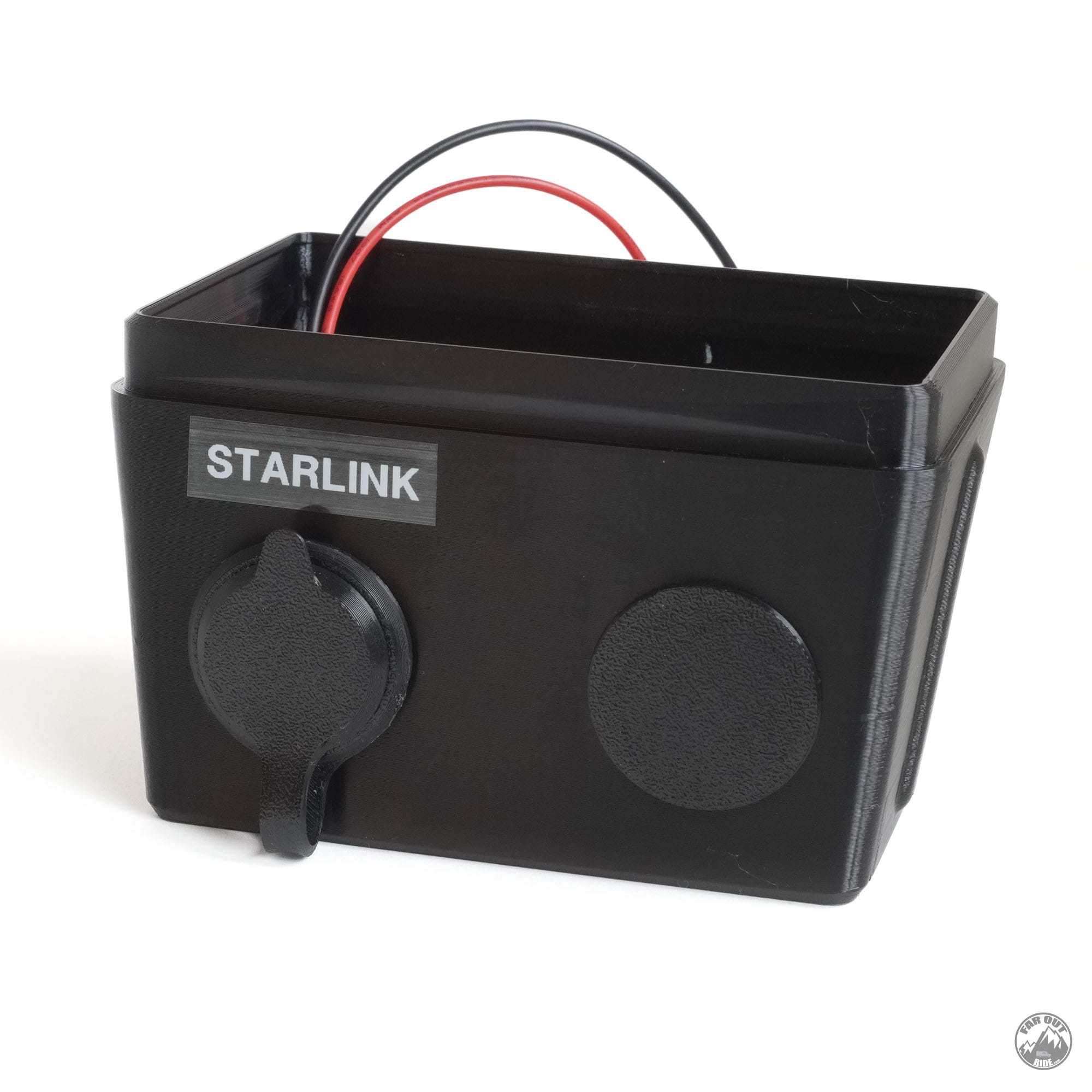

Starlink & Solar D-Pillar Entry Box for Ford Transit (No Drill / No Screw)
Price range: $64.95 through $69.95
This Entry Box snaps into the Ford Transit D-Pillar cutout (driver or passenger-side), and cables are routed in the van through existing openings. The entire installation is drill-free and screw-free! Add any two connectors of your choice into the 30mm diameter cutouts (1.18in), as long as the connectors hold with a nut (not screws).
Included:

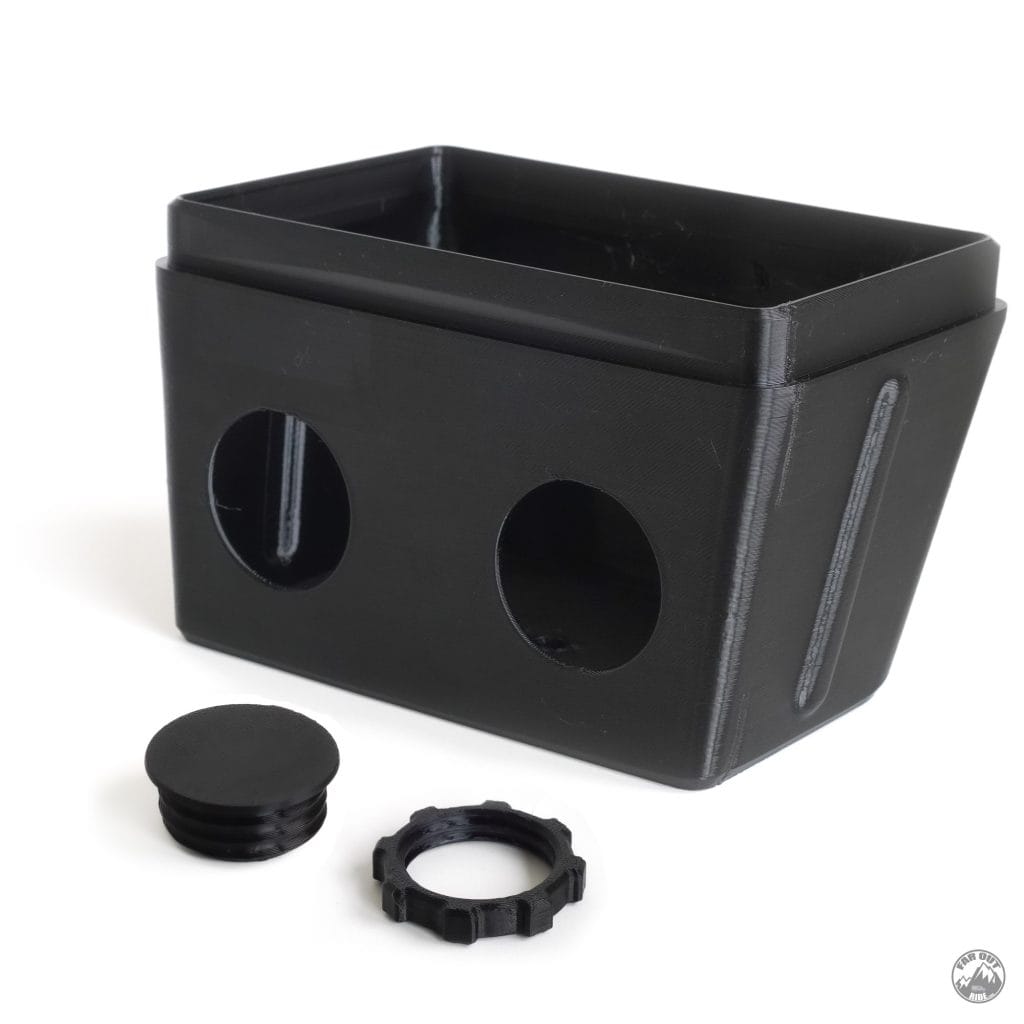

- 1 x D-Pillar Entry Box for 2015-Up Ford Transit.
- 1 x Blank Plug & nut, in case you only need to use one side.
Not Included:

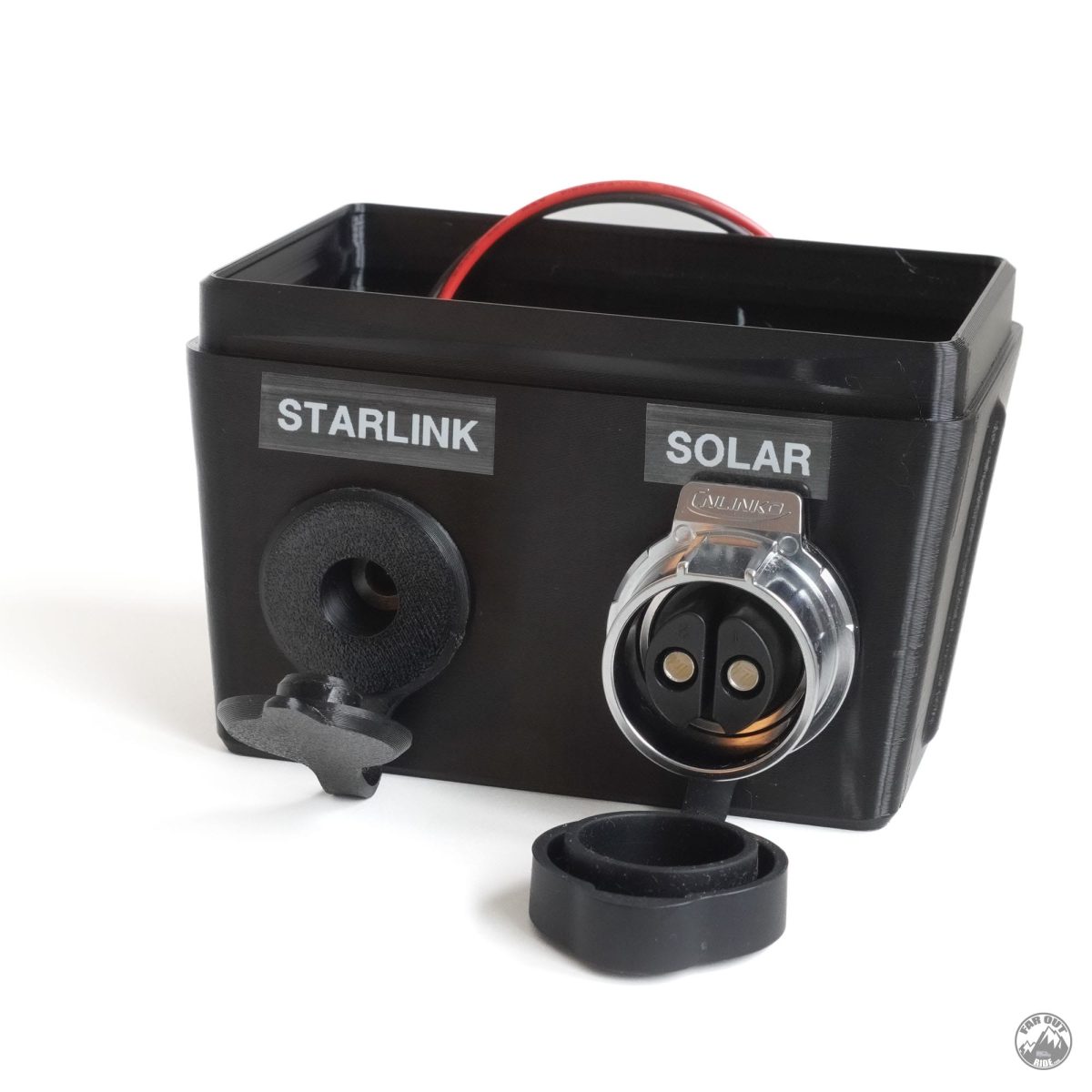

- Solar connector shown in photo.
- Labels (“Starlink”, “Solar”).
Optional:
- Starlink Mini Connector.
Compatible Connectors (not included, non-exhaustive list):
- CNLINKO LP-28 2-Pin Waterproof (up to 500V/50A).
- Anderson Power Pole PP45 Panel Mount Connector (600V/45A).
- SAE Waterproof Panel Mount Connector (prewired with 12 AWG).
Scroll down for Installation Instructions.
(D-Pillar Entry Boxes also available: 15A Shore Power, 30A Shore Power, and Blank/DIY)
Starlink Mini Installation
You can read our Starlink Mini Install Guide to learn more. Here’s what we cover:
- Powering & wiring;
- Roof installation;
- Ground deployment (using the D-pillar box).
Connectors Installation

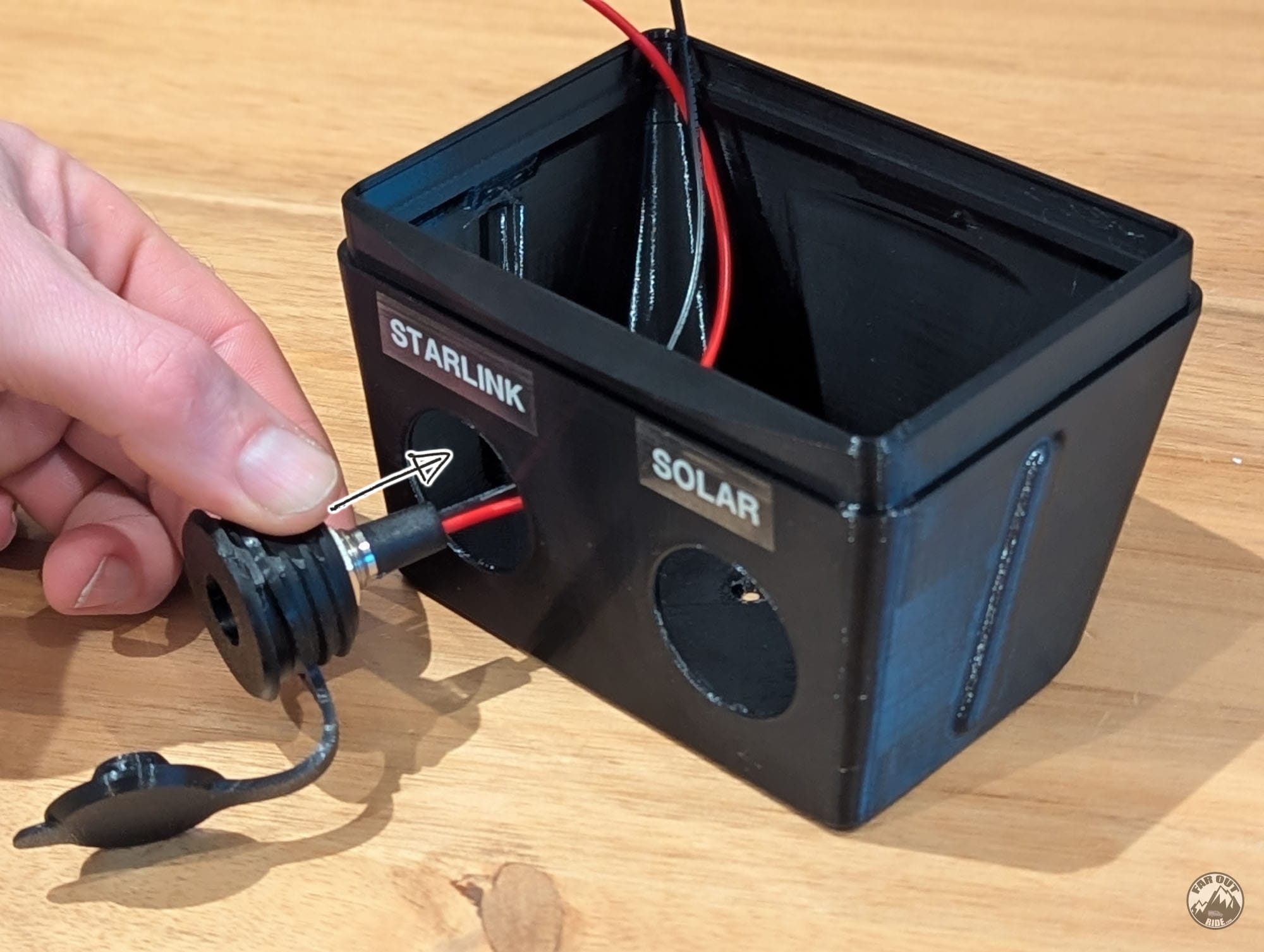

Route the wires first and insert your connector in one of the 30mm cutouts (or blank plug, etc.):

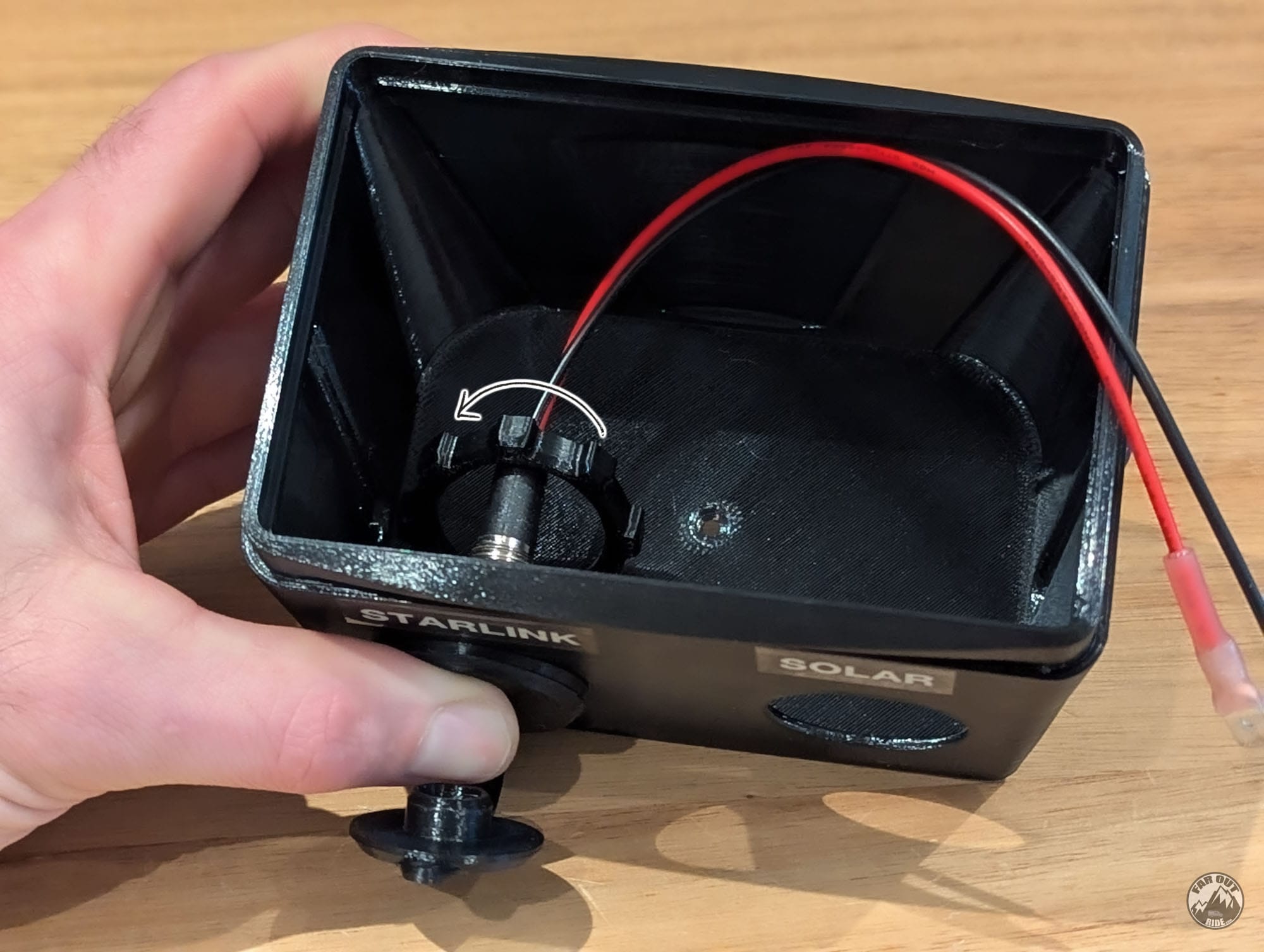

Tighten the screw in the back and that’s it!
Van Installation
The entry box fits the driver or passenger side. Driver side is shown below.
Under the D-Pillar, grab an edge of the rubber cover:
Pull down to remove the cover:
Route the wires (Starlink Mini, Solar, etc.) through the D-Pillar cutout:
Grab and pull the wires from inside the van:
We recommend using weatherproof connectors (such as Ancor Insulated Heat Shrink Disconnects):
Snap the Entry Box into the D-Pillar. You can gently press the top edges (front & back) to make it easier:
That’s it! No need to seal the edges, it’s ready to go!
(To remove the entry box, gently squeeze the front & back edges, then pull down.)
Specifications

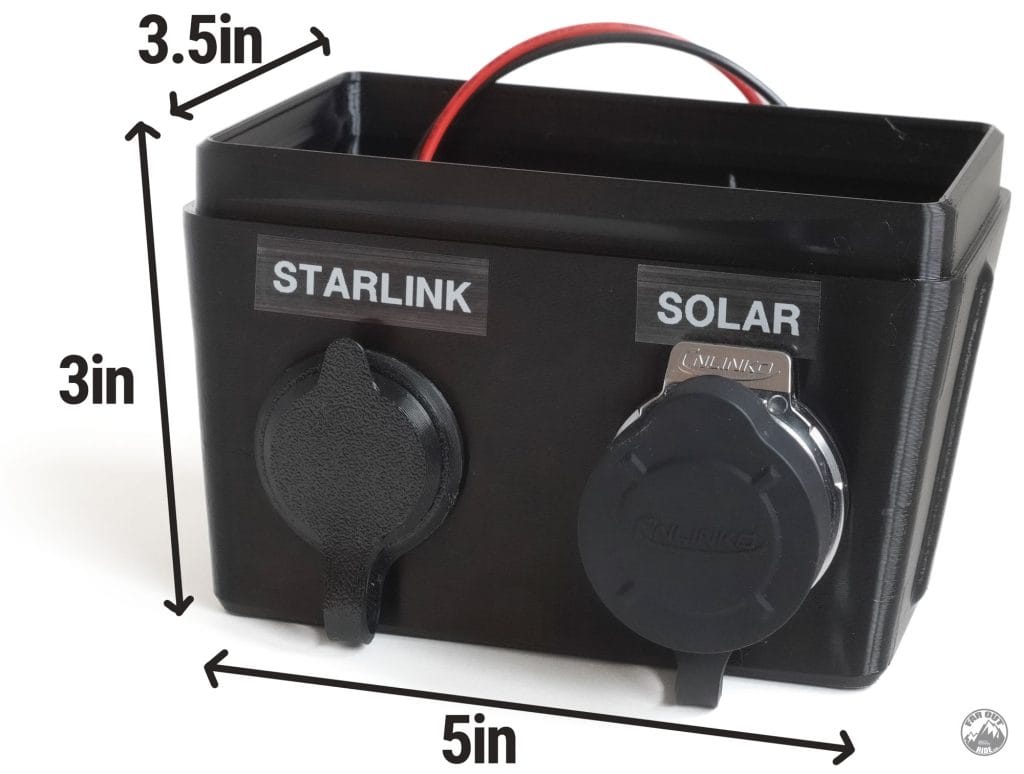

- Outside Dimensions: 5in x 3.5in x 3in (127mm x 89mm x 76mm).
- Material: Polycarbonate/PETG.
- Temperature Resistance: Up to 221F (105°C).
Shipping
- Ships From: British Columbia, Canada.
- Carrier: Canada Post / USPS.
- Cost: Actual carrier shipping rate calculated at checkout. You can combine other items from our Store to save on shipping.
Warranty, Returns & Refunds
Warranty:
- If there is an issue or manufacturing defect, we’ll be happy to send you another free of charge! 🙂
- “Crash” replacement: if the Entry Box breaks during normal usage (rock, snow bank, etc.), we offer 70% discount on a new one (plus shipping). All we ask is a photo of the damaged box. We still think the box should be the weakest link to prevent damage to the van structure.
Return & Refund: See our Return and Refund Policy.
ABOUT THIS PRODUCT
Do It Yourself.
We wanted a solution to connect a Starlink Mini and portable solar panels, so we made one.
This is an homemade product.
Each part is individually 3D printed and assembled by us. This is not a mass-produced product. This is a crafted, hand-made product.
Low Volume.
We created this product for our own needs, to make just a few units. There is no way for us to ramp up the production and lower the price, unless we take it to injection molding manufacturing but that’s a whole another level we’re not considering at the moment.
