D-Pillar USB/12V Outlet Plate – Ford Transit
US$39.95
Use this plate to add outlets (USB, 12V socket, etc.) to your upholstered D-Pillar. The plate snaps into the existing cutout on the passenger or driver side of the Ford Transit. Both cutouts in the plate are 30mm (1.2 in) in diameter and should accept any panel-mounted socket held with a nut.
Included:
- 1 x Plate for 2015-Up Ford Transit.

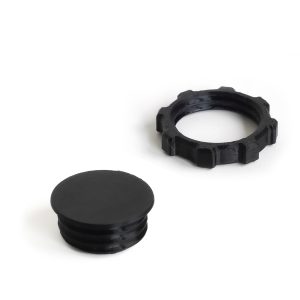

- 1 x Blank Plug & Nut, in case only one outlet is needed.
- Outlets NOT included (see list below).
Example of compatible outlets (Not included with the plate. This is a non-exhaustive list):
- USB Outlet (100W Type-C & 18W USB-A).
- 12V Socket (10A).
- CNLINKO LP-28 2-Pin Waterproof (up to 500V/50A).
- Anderson Power Pole PP45 Panel Mount Connector (600V/45A).
- SAE Waterproof Panel Mount Connector (prewired with 12 AWG).
Scroll down for Installation Instructions.

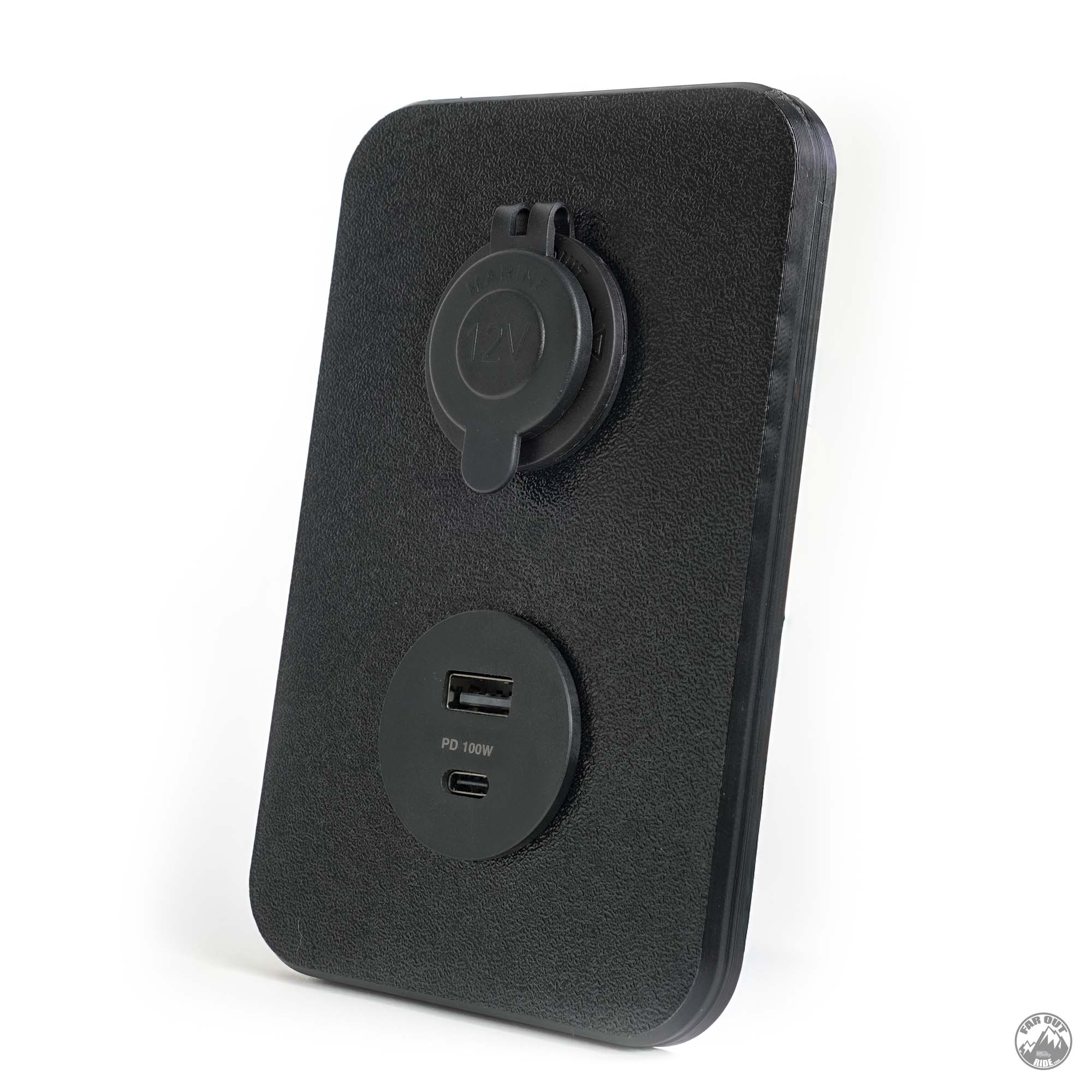

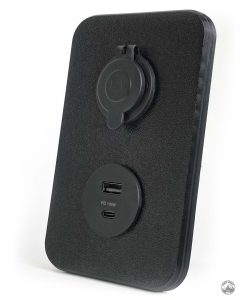

with outlets*:

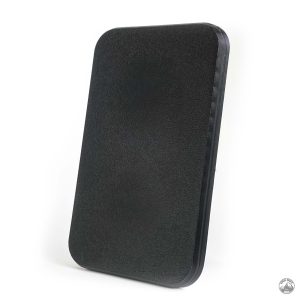

Plate only:
Installation

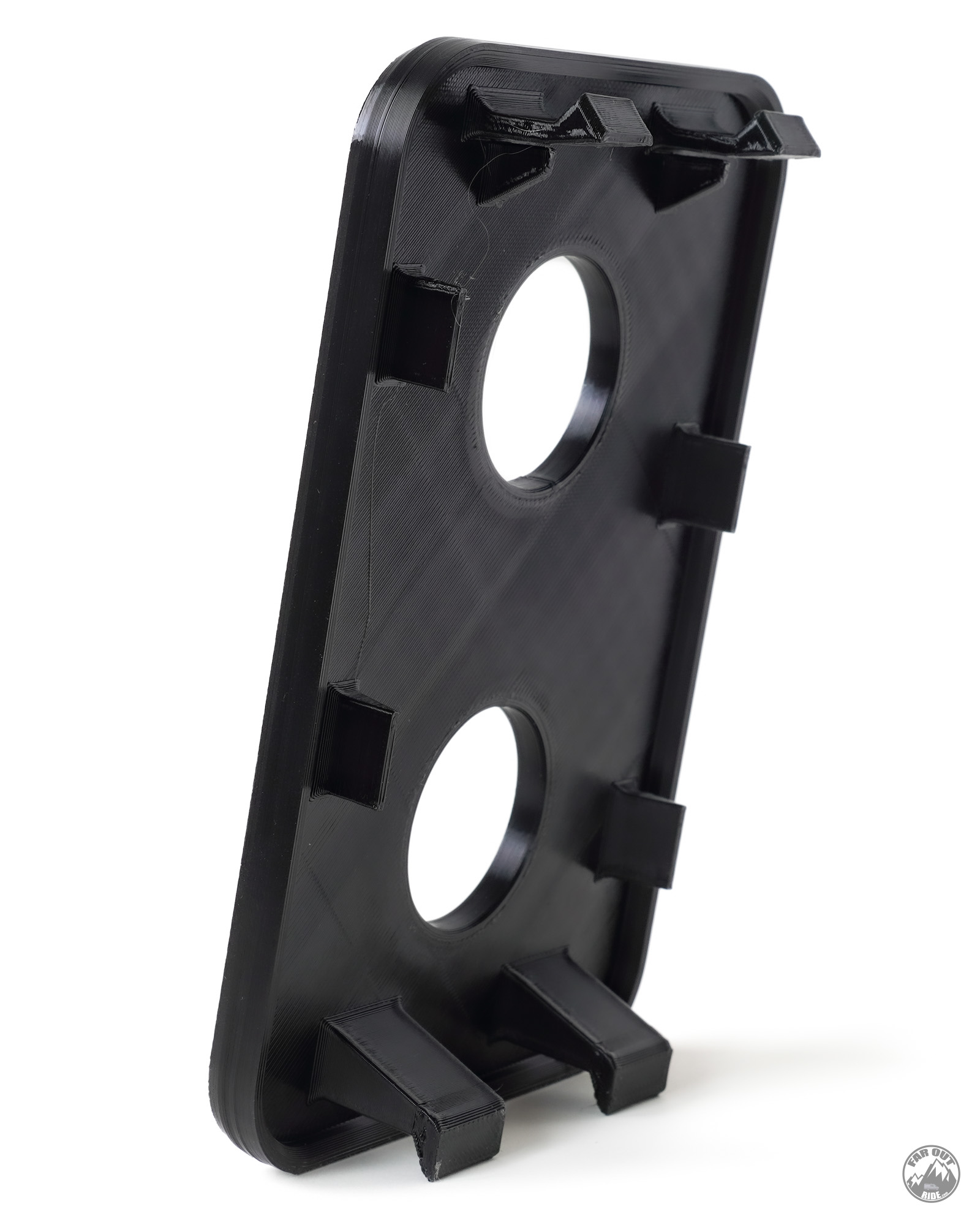

Install and wire your outlet(s), then insert the plate’s bottom edge first (edge with the fixed feet):
This plate is designed for upholstered D-Pillar (per faroutride.com/upholstery), and the fit may be loose if installed on bare metal:

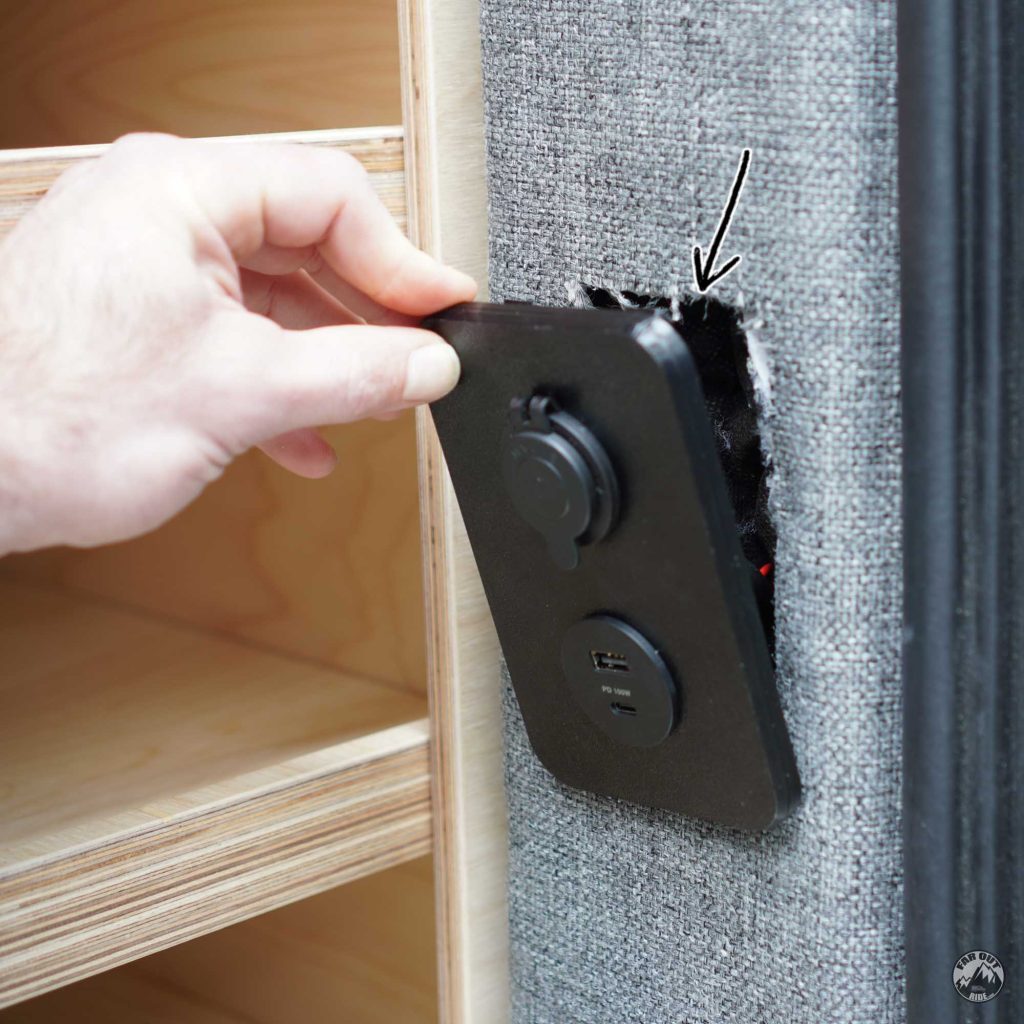

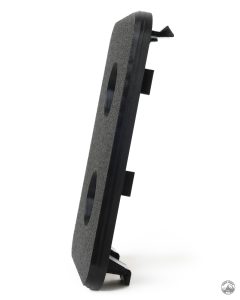

Push the top edge to snap in place (edge with the flexible feet):

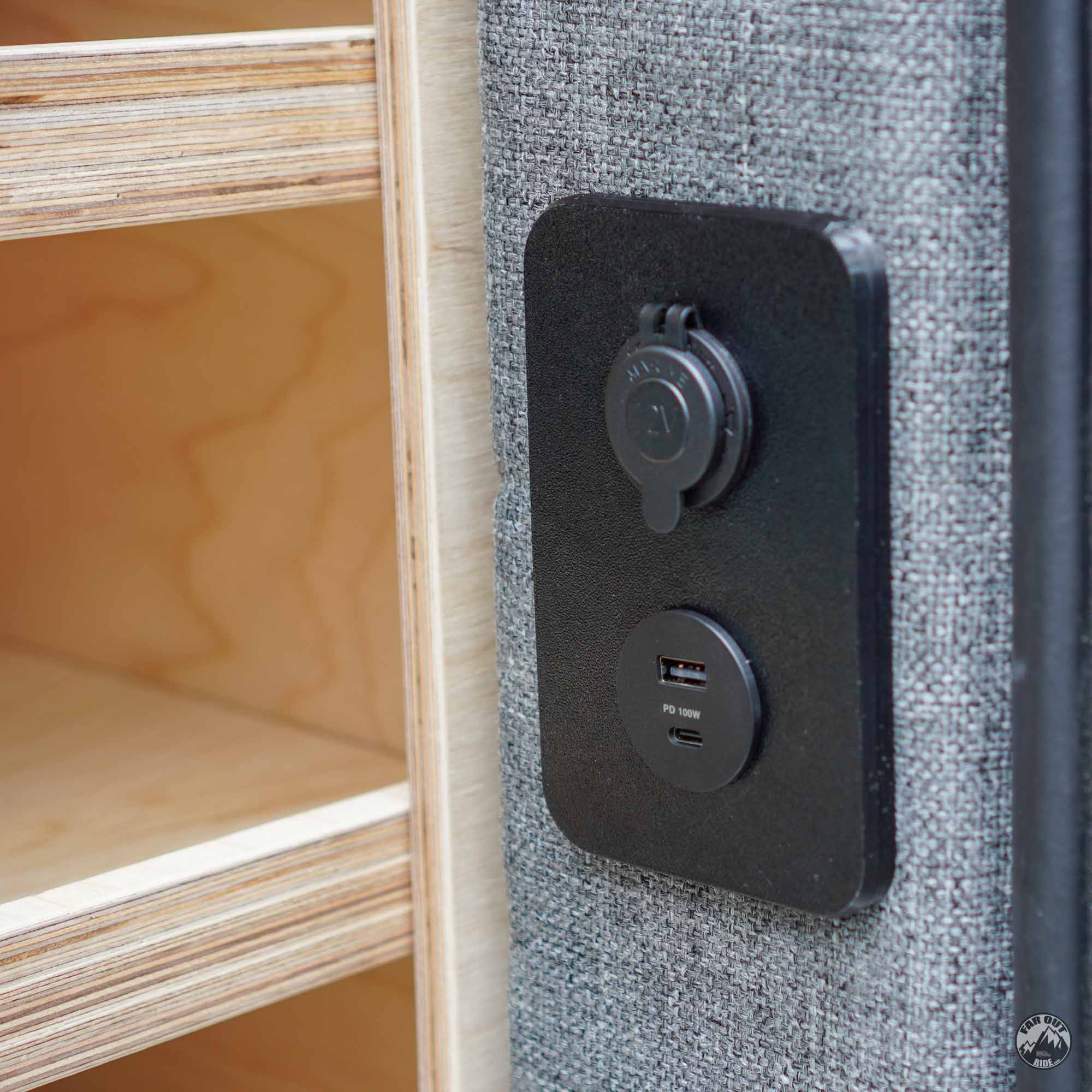

That’s all!
Compatibility
Compatible with:
- 2015-present Ford Transit.
- Upholstered D-pillar.
- Any panel-mounted connector held with a screw that fits into a 30mm (1.2in) cutout.
Specifications
- Dimensions: 5.6 high” x 3.6″ wide x 1.2″ deep (14.2cm high x 9.2cm wide x 3cm deep).
- Cutouts Diameter: 30mm (1.2in)
- Material: Polycarbonate/PETG.
- Temperature Resistance: Up to 221F (105°C).
Shipping
- Ships From: British Columbia, Canada.
- Carrier: Canada Post / USPS.
- Cost: Actual carrier shipping rate calculated at checkout. You can combine other items from our Store to save on shipping.
wARRANTY, rETURNs & Refund
Warranty: If there is an issue or manufacturing defect, we’ll be happy to send you another free of charge! 🙂
Return & Refund: See our Return and Refund Policy.
ABOUT THIS PRODUCT
Do It Yourself.
We wanted outlets in our Ford Transit D-Pillar, so we made this plate.
This is an homemade product.
Each plate is 3D-printed and made by us. This is not a mass-produced product; it is a crafted, hand-made product.
Low Volume.
We created this product for our own needs, to make just a few units. We cannot ramp up the production and lower the price unless we take it to injection molding manufacturing, but that’s a whole other level we’re not considering at the moment.
